This week’s system design refresher:

• Cloud Load Balancer Cheat Sheet

• How CQRS Works?

• How does Docker Work?

• 6 Practical AWS Lambda Application Patterns You Must Know

• Containerization Explained: From Build to Runtime

• 🚀 Learn AI in the New Year: Become an AI Engineer Cohort 3 Now Open

---

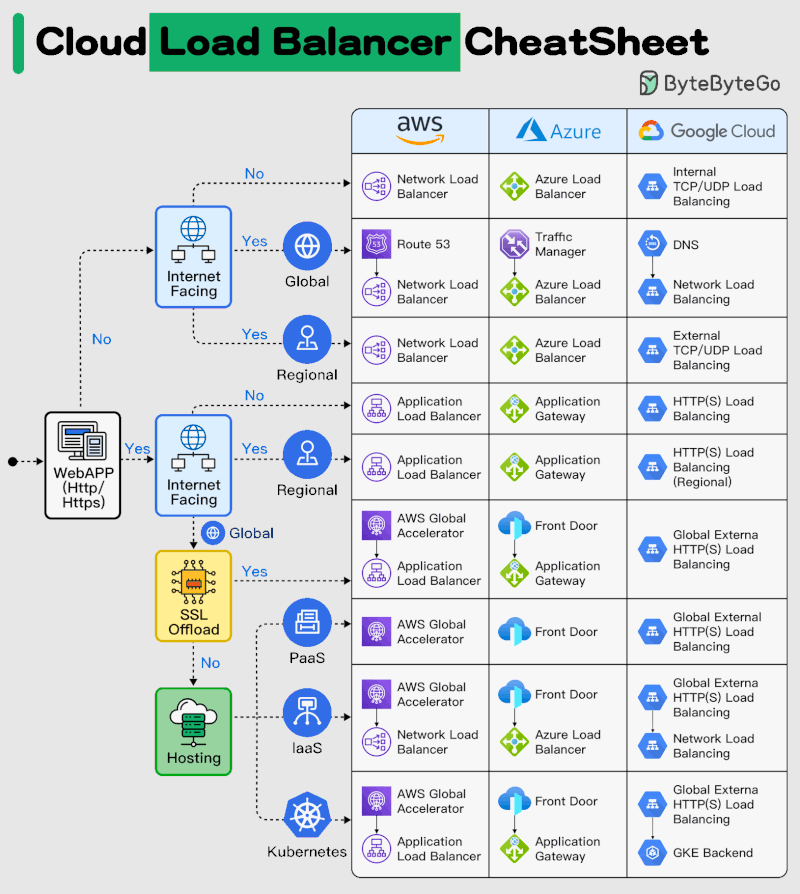

Cloud Load Balancer Cheat Sheet

Efficient load balancing is vital for optimizing the performance and availability of your applications in the cloud.

However, managing load balancers can be overwhelming, given the various types and configuration options available.

In today's multi-cloud landscape, mastering load balancing is essential to ensure seamless user experiences and maximize resource utilization, especially when orchestrating applications across multiple cloud providers. Having the right knowledge is key to overcoming these challenges and achieving consistent, reliable application delivery.

In selecting the appropriate load balancer type, it's essential to consider factors such as application traffic patterns, scalability requirements, and security considerations. By carefully evaluating your specific use case, you can make informed decisions that enhance your cloud infrastructure's efficiency and reliability.

This Cloud Load Balancer cheat sheet would help you in simplifying the decision-making process and helping you implement the most effective load balancing strategy for your cloud-based applications.

Over to you: What factors do you believe are most crucial in choosing the right load balancer type for your applications?

---

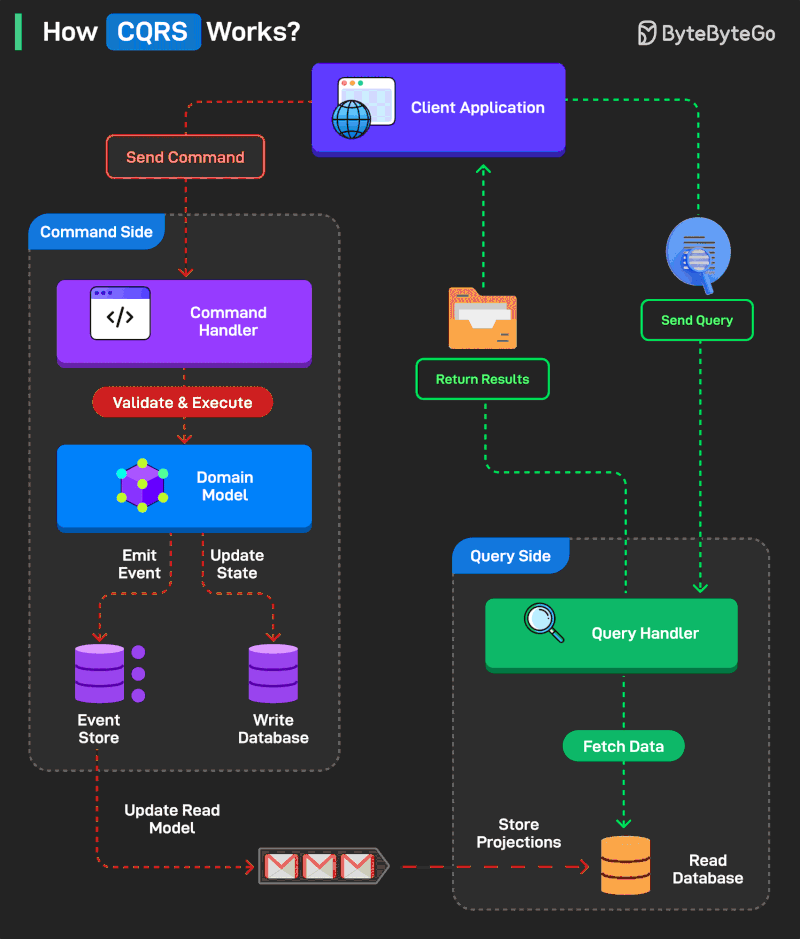

How CQRS Works?

CQRS (Command Query Responsibility Segregation) separates write (Command) and read (Query) operations for better scalability and maintainability.

Here’s how it works:

1. The client sends a command to update the system state. A Command Handler validates and executes logic using the Domain Model.

2. Changes are saved in the Write Database and can also be saved to an Event Store. Events are emitted to update the Read Model asynchronously.

3. The projections are stored in the Read Database. This database is eventually consistent with the Write Database.

4. On the query side, the client sends a query to retrieve data.

5. A Query Handler fetches data from the Read Database, which contains precomputed projections.

6. Results are returned to the client without hitting the write model or the write database.

Over to you: What else will you add to understand CQRS?

---

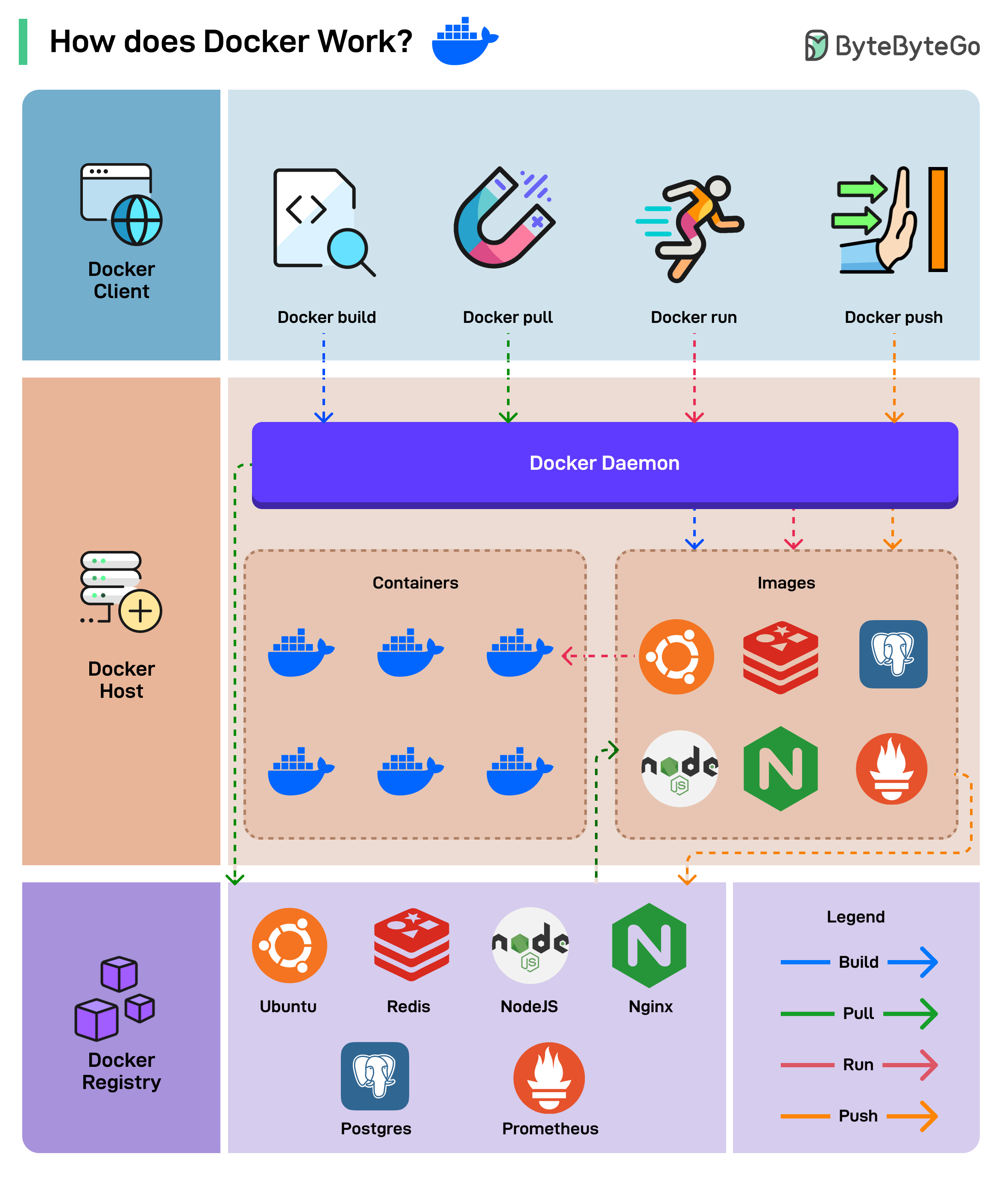

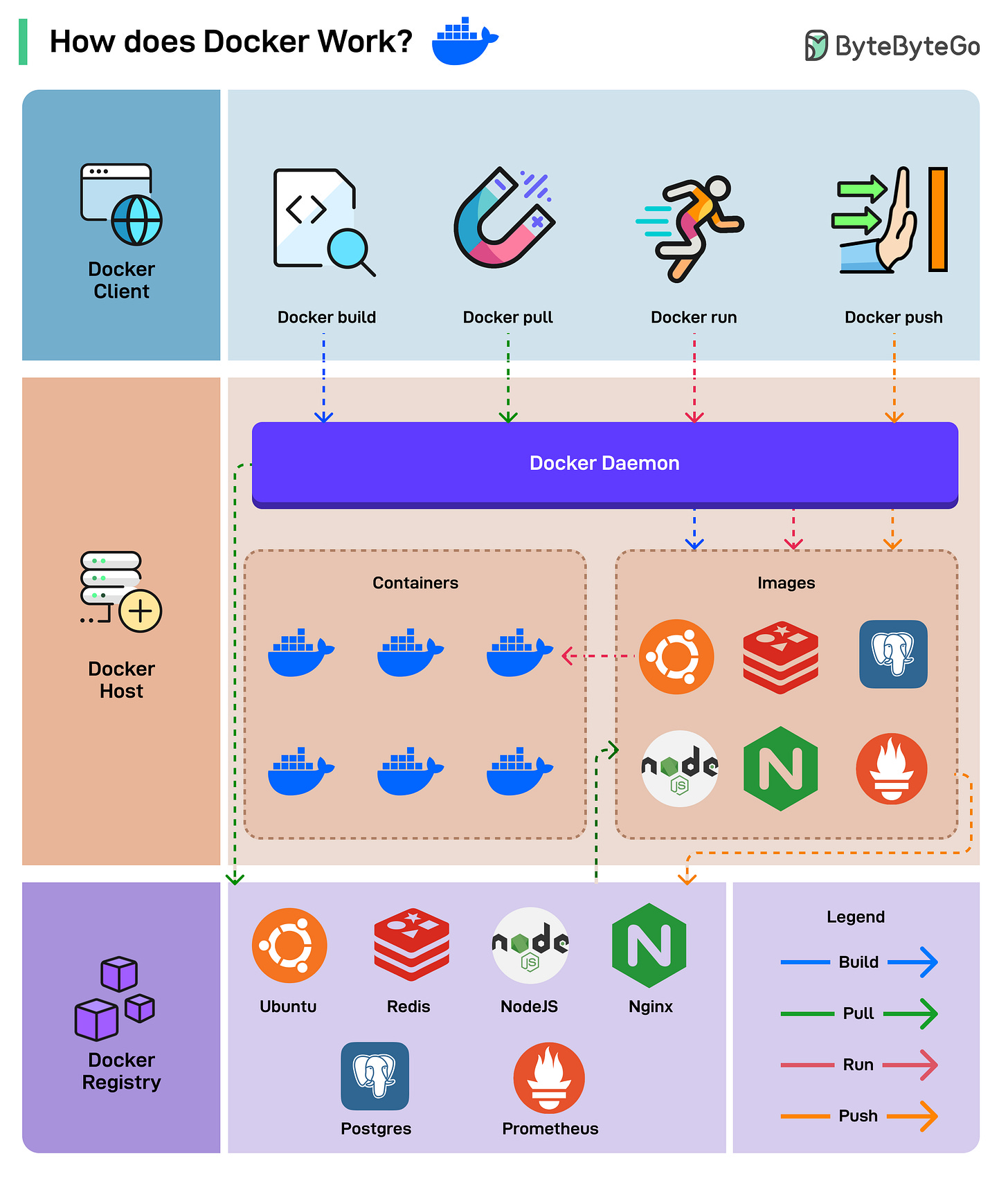

How does Docker Work?

Docker’s architecture is built around three main components that work together to build, distribute, and run containers.

1. Docker Client
   This is the interface through which users interact with Docker. It sends commands (such as build, pull, run, push) to the Docker Daemon using the Docker API.

2. Docker Host
   This is where the Docker Daemon runs. It manages images, containers, networks, and volumes, and is responsible for building and running applications.

3. Docker Registry
   The storage system for Docker images. Public registries like Docker Hub or private registries allow pulling and pushing images.

Over to you: Do you use Docker in your projects?

---

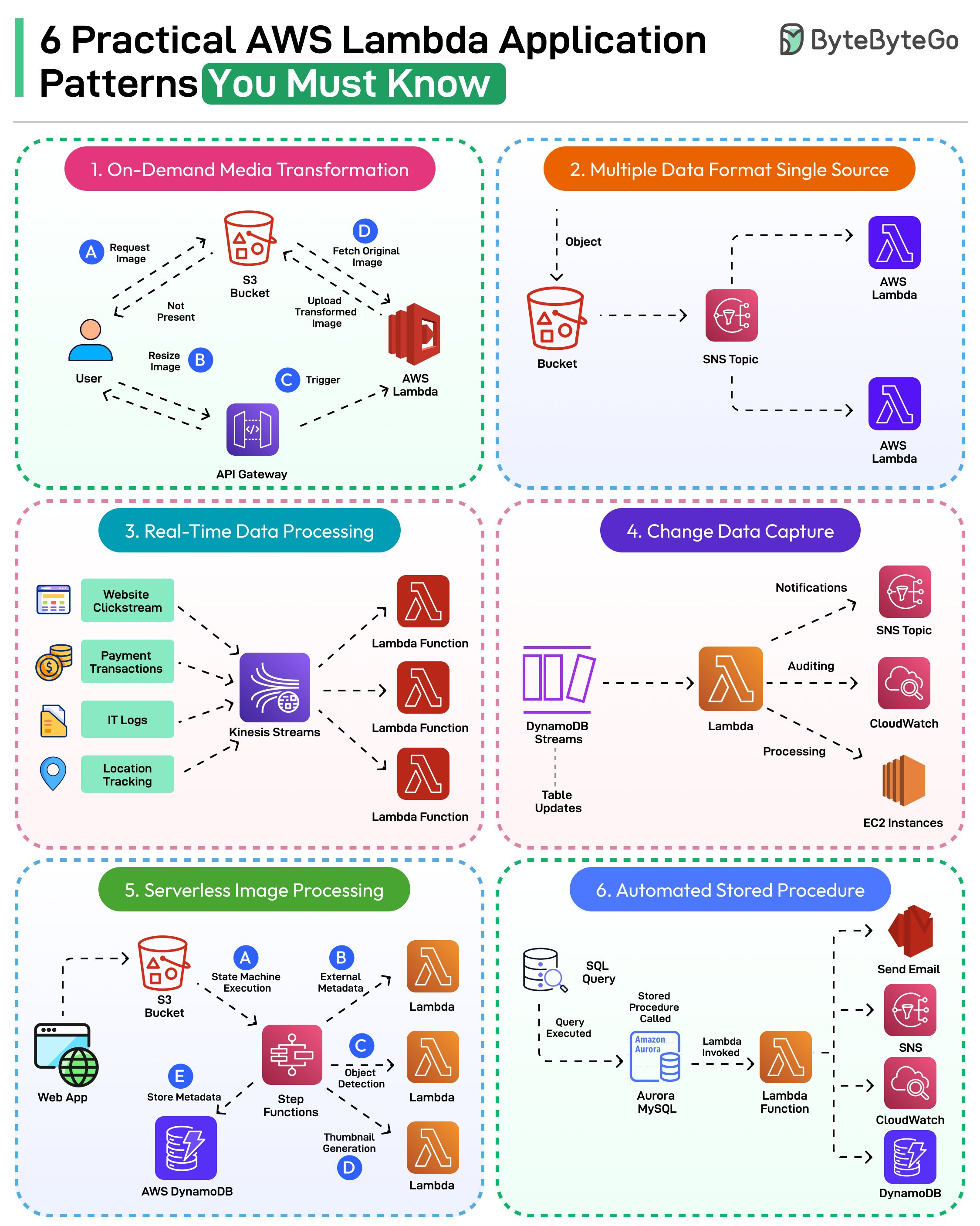

6 Practical AWS Lambda Application Patterns You Must Know

AWS Lambda pioneered the serverless paradigm, allowing developers to run code without provisioning, managing, or scaling servers. Let’s look at a few practical application patterns you can implement using Lambda.

1. On-Demand Media Transformation
   Whenever a user requests an image from S3 in a format that isn’t available, an on-demand transformation can be done using AWS Lambda.

2. Multiple Data Format from Single Source
   AWS Lambda can work with SNS to create a layer where data can be processed in the required format before sending to the storage layer.

3. Real-time Data Processing
   Create a Kinesis stream and corresponding Lambda function to process different types of data (clickstream, logs, location tracking, or transactions) from your application.

4. Change Data Capture
   Amazon DynamoDB can be integrated with AWS Lambda to respond to database events (inserts, updates, and deletes) in the DynamoDB streams.

5. Serverless Image Processing
   Process and recognize images in a serverless manner using AWS Lambda. Integrate with AWS Step Functions for better workflow management.

6. Automated Stored Procedure
   Invoke Lambda as a stored procedure to trigger functionality before/after some operations are performed on a particular database table.

Over to you: Have you used AWS Lambda in your project?

---

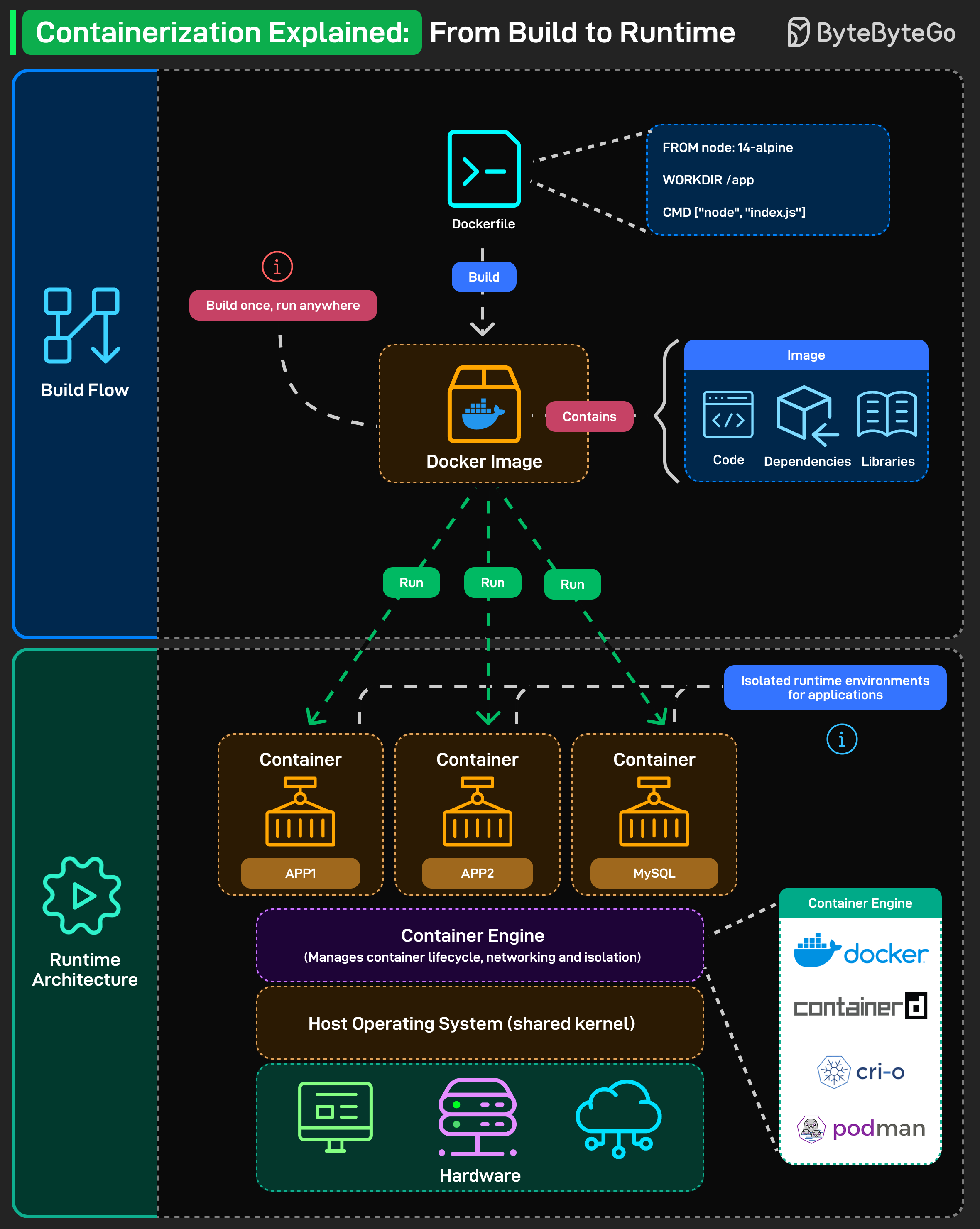

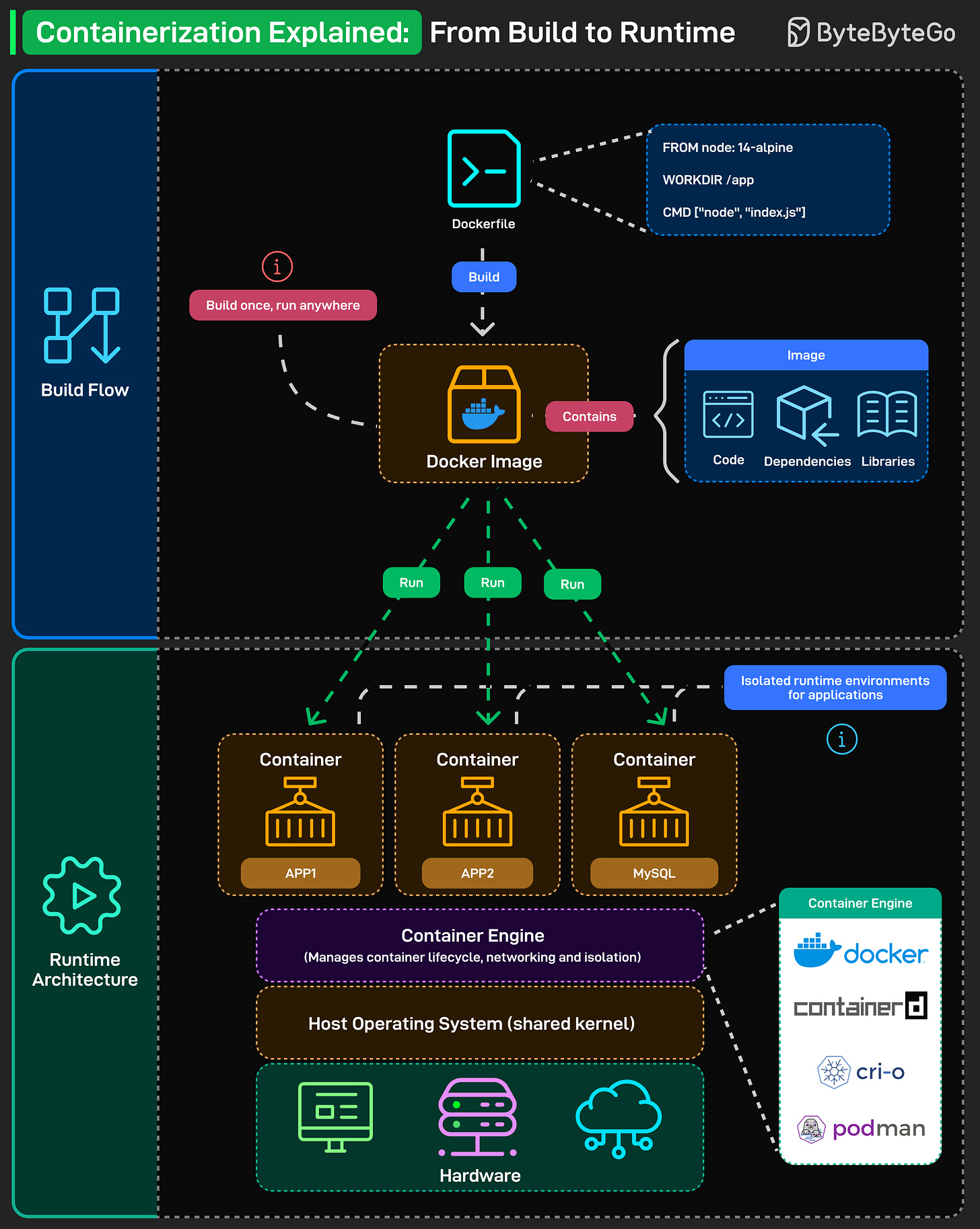

Containerization Explained: From Build to Runtime

“Build once, run anywhere.” That’s the promise of containerization, and here’s how it actually works:

Build Flow: Everything starts with a Dockerfile, which defines how your app should be built. When you run docker build, it creates a Docker Image containing:

• Your code

• The required dependencies

• Necessary libraries

This image is portable. You can move it across environments, and it’ll behave the same way, whether on your local machine, a CI server, or in the cloud.

Runtime Architecture: When you run the image, it becomes a Container, an isolated environment that executes the application. Multiple containers can run on the same host, each with its own filesystem, process space, and network stack.

The Container Engine (like Docker, containerd, CRI-O, or Podman) manages:

• The container lifecycle

• Networking and isolation

• Resource allocation

All containers share the Host OS kernel, sitting on top of the hardware. That’s how containerization achieves both consistency and efficiency, light like processes, but isolated like VMs.

Over to you: When deploying apps, do you prefer Docker, containerd, or Podman, and why?

---
