Shopify Tech Stack
Note: This article is written in collaboration with the Shopify engineering team. Special thanks to the Shopify engineering team for sharing details with us about their tech stack and also for reviewing the final article before publication. All credit for the technical details and diagrams shared in this article goes to the Shopify Engineering Team.
Shopify handles scale that would break most systems.
On a single day (Black Friday 2024), the platform processed 173 billion requests, peaked at 284 million requests per minute, and pushed 12 terabytes of traffic every minute through its edge.
These numbers aren’t anomalies. They’re sustained targets that Shopify strives to meet. Behind this scale is a stack that looks deceptively simple from the outside: Ruby on Rails, React, MySQL, and Kafka.
But that simplicity hides sharp architectural decisions, years of refactoring, and thousands of deliberate trade-offs.

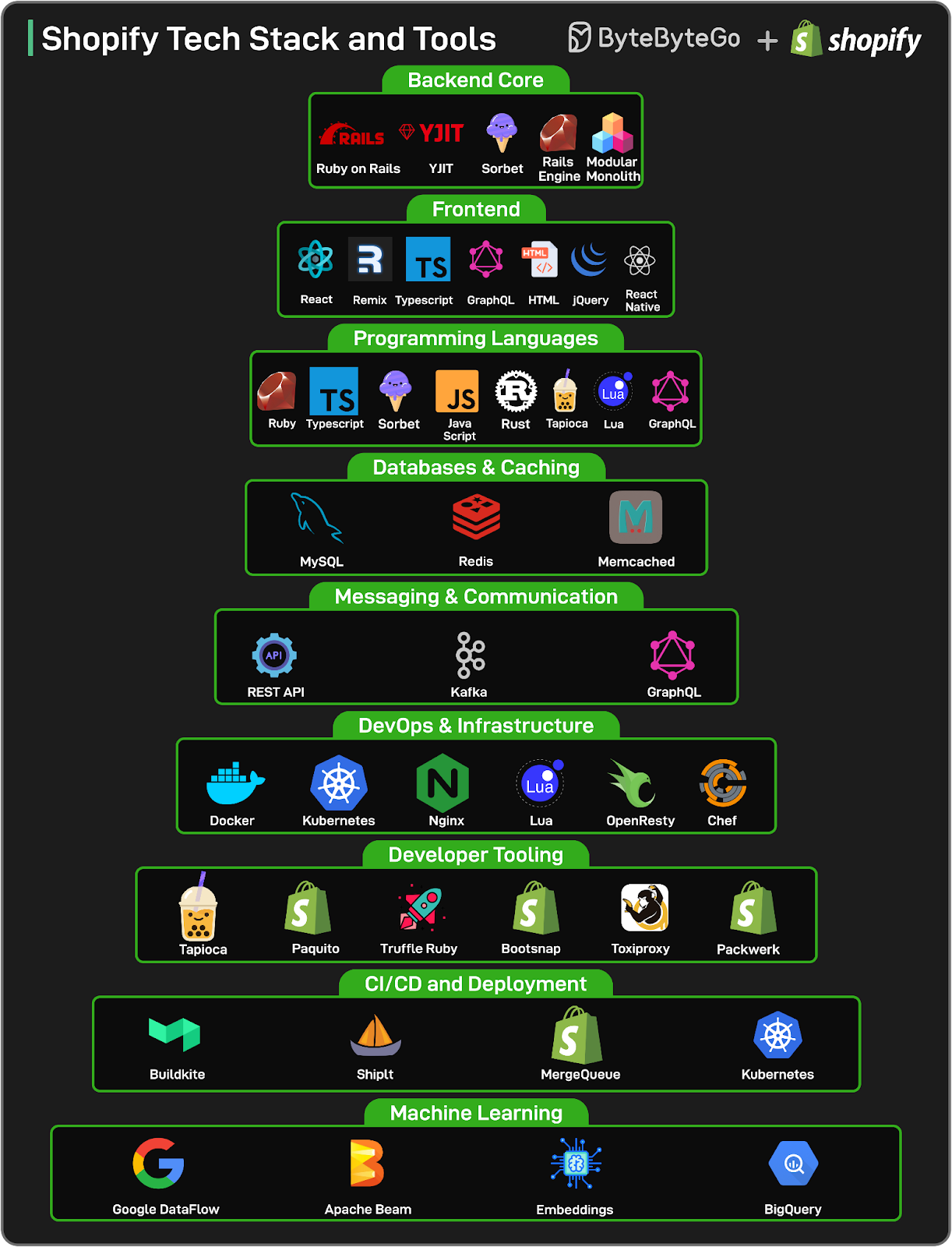

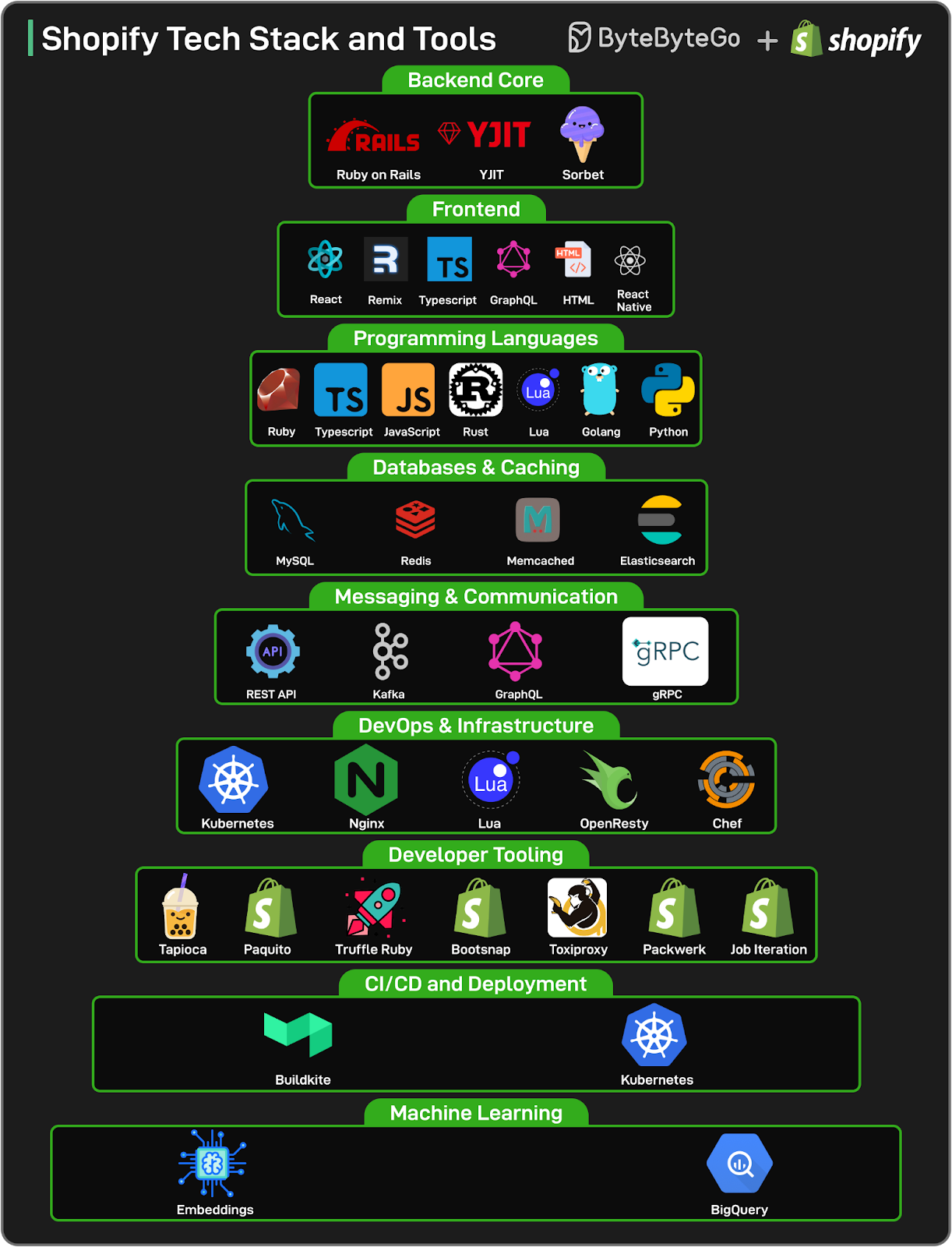

In this article, we map the tech stack powering Shopify from the modular monolith that still runs the business, to the pods that isolate failure domains, to the deployment pipelines that ship hundreds of changes a day. It covers the tools, programming languages, and patterns Shopify uses to stay fast, resilient, and developer-friendly at incredible scale.
Shopify Backend Architecture
Shopify’s backend runs on Ruby on Rails. The original codebase, written in the early 2000s, still forms the heart of the system. Rails offers fast development, convention over configuration, and strong patterns for database-backed web applications. Shopify also uses Rust for its systems programming language.
While most startups eventually rewrite their early frameworks, Shopify doubled down to help ensure Ruby and Rails are 100-year tools that will continue to merit being in their toolchain of choice. Instead of moving on to another framework, Shopify pushed it further. They invested in:
YJIT, a Just-in-Time compiler for Ruby built on Rust that improves runtime performance without changing developer ergonomics.
Sorbet, a static type checker built specifically for Ruby. Shopify contributed heavily to Sorbet and made it a first-class part of the stack.
Rails Engines, a built-in Rails feature repurposed as a modularity mechanism. Each engine behaves like a mini-application, allowing isolation, ownership, and eventual extraction if needed.
The result is one of the largest and longest-running Rails applications in production.
Modularization Strategy
Shopify runs a modular monolith. That phrase gets thrown around a lot, but in Shopify’s case, it means this: the entire codebase lives in one repository, runs in a single process, but is split into independently deployable components with strict boundaries.

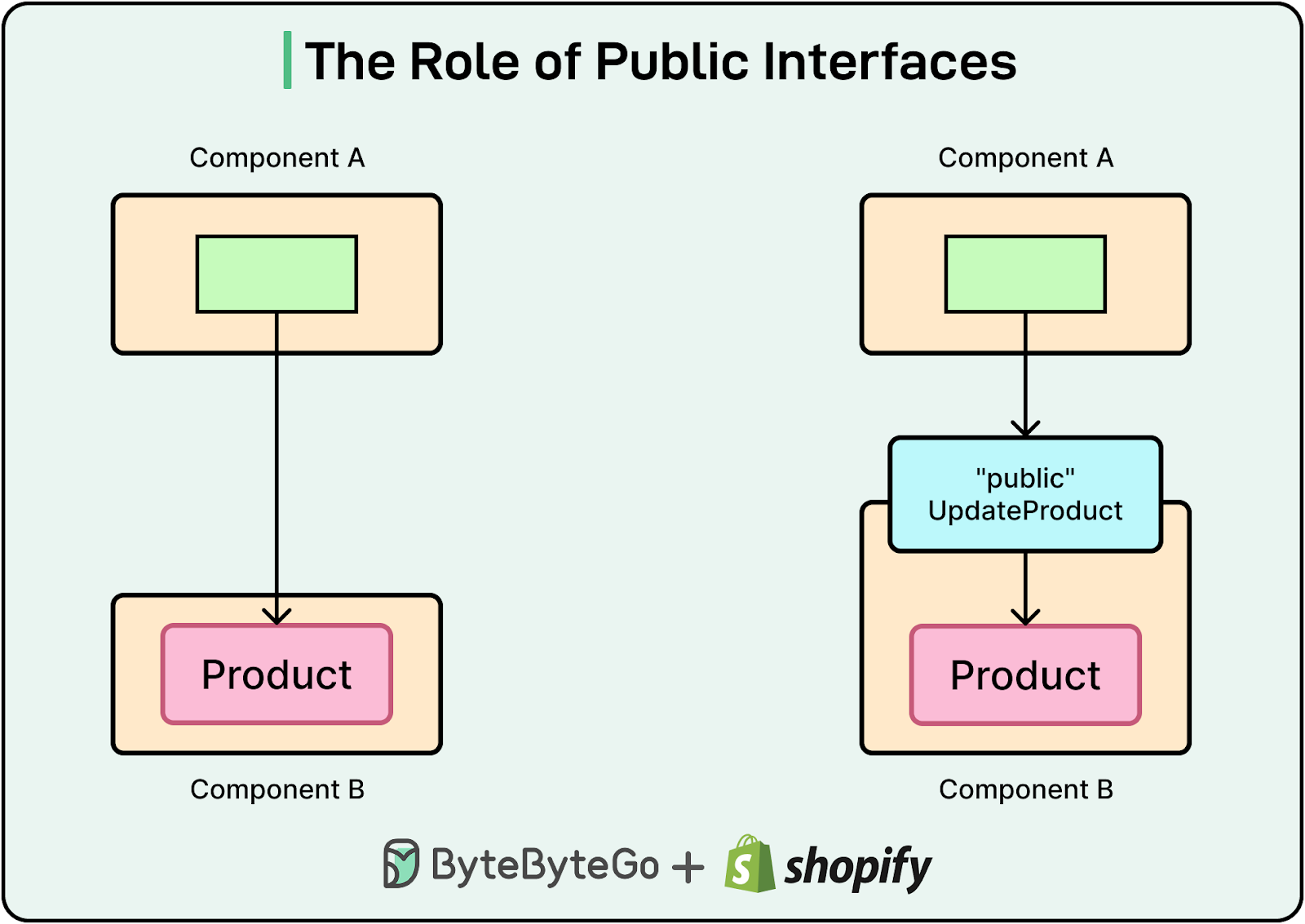

Each component defines a public interface, with contracts enforced via Sorbet.
These interfaces aren’t optional. They’re a way to prevent tight coupling, allow safe refactoring, and make the system feel smaller than it is. Developers don’t need to understand millions of lines of code. They need to know the contracts their component depends on and trust those contracts will hold.

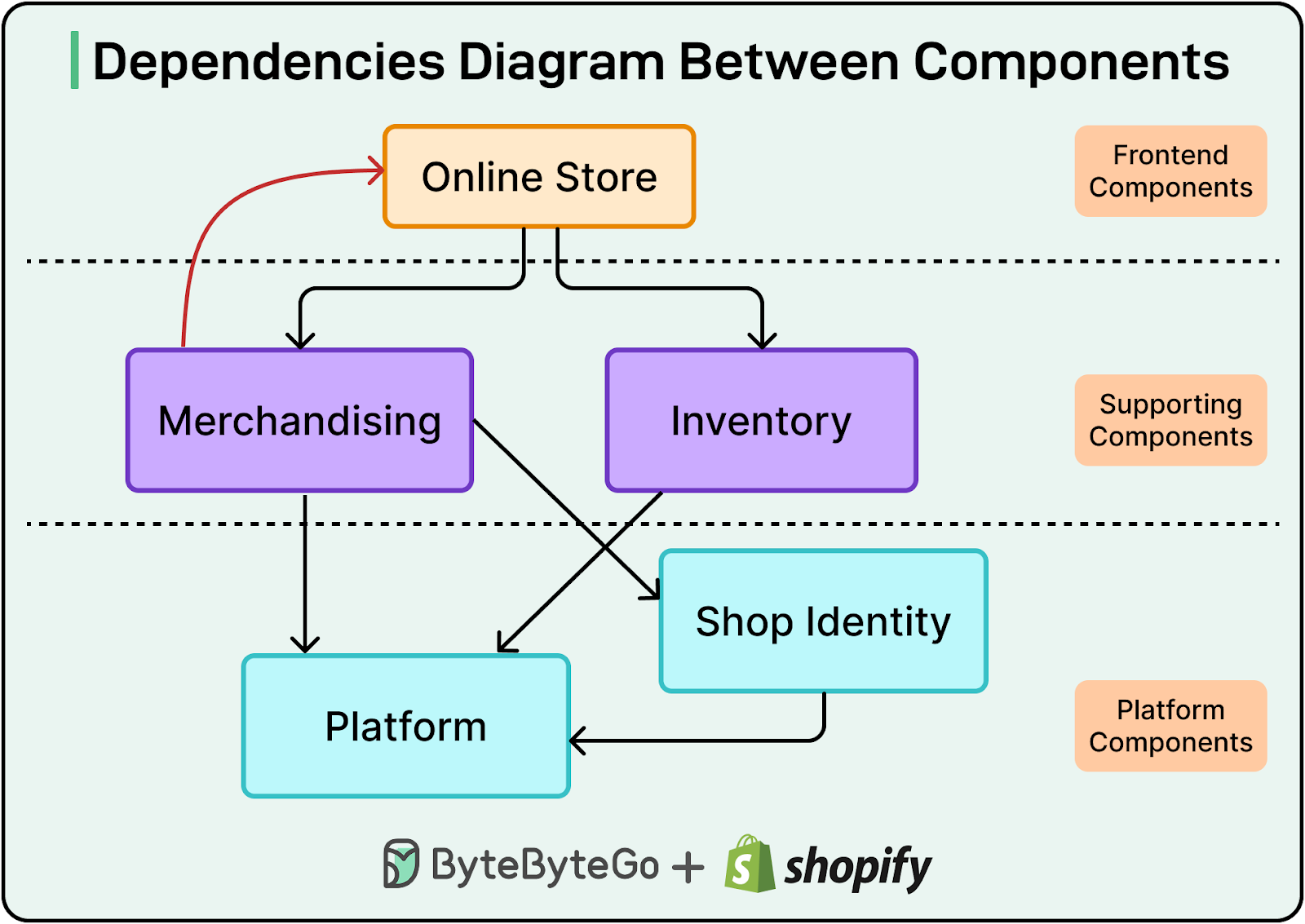

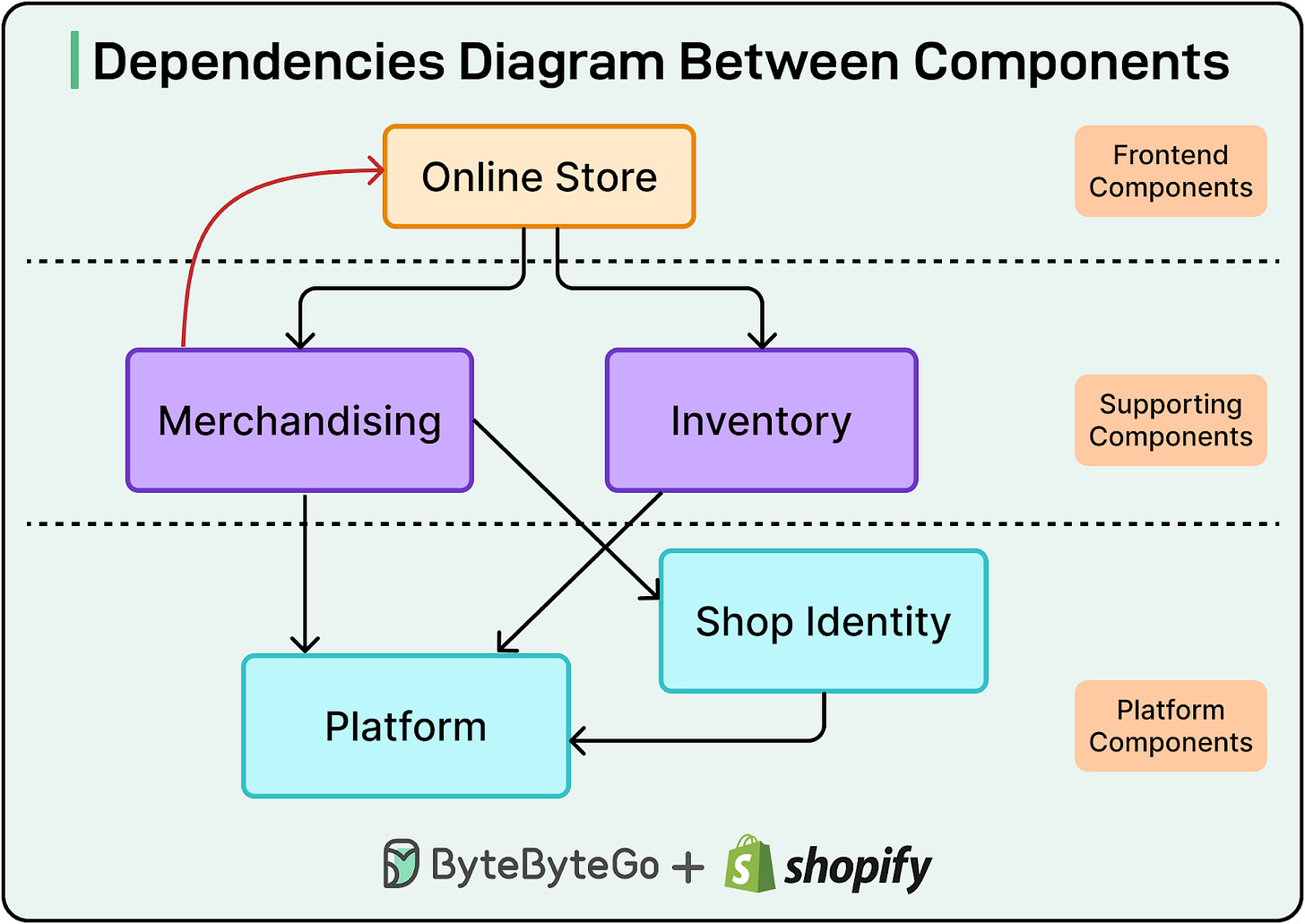

To manage complexity, components are organized into logical layers:
Platform: Foundational services like identity, shop state, and database abstractions
Supporting: Business domains like inventory, shipping, or merchandising
Frontend-facing: External interfaces like the online store or GraphQL APIs
This layering prevents cyclic dependencies and encourages clean flow across domains.
To support this at scale, Shopify maintains a comprehensive system of static analysis tools, exception monitoring dashboards, and differentiated application/business metrics to track component health across the company.
This modular structure doesn’t make development effortless. It introduces boundaries, which can feel like friction. However, it keeps teams aligned, reduces accidental coupling, and lets Shopify evolve without losing control of its core.
Frontend Technologies
Shopify’s frontend has gone through multiple architectural shifts, each one reflecting changes in the broader web ecosystem and lessons learned under scale.
The early days used standard patterns: server-rendered HTML templates, enhanced with jQuery and prototype.js. As frontend complexity grew, Shopify built Batman.js, its single-page application (SPA) framework. It offered reactivity and routing, but like most in-house frameworks, it came with long-term maintenance overhead.
Eventually, Shopify shifted back to simpler patterns: statically rendered HTML and vanilla JavaScript. However, that also had limits. Once the broader ecosystem matured, particularly around React and TypeScript, the team made a clean move forward.
Today, the Shopify Admin interface runs on React, React Router by Remix, written in TypeScript, and driven entirely by GraphQL. It follows a strict separation: no business logic in the client, no shared state across views. The Admin is one of Shopify’s biggest apps, built on Remix that behaves as a stateless GraphQL client. Each page fetches exactly the data it needs, when it needs it.
This discipline enforces consistency across platforms. Mobile apps and web admin screens speak the same language (GraphQL), reducing duplication and misalignment between surfaces.
Mobile Development with React Native
Mobile development at Shopify follows a similar philosophy: reuse where possible, specialize where needed.
Every major app now runs on React Native. The goal of using a single framework is to share code, reduce drift between platforms, and improve developer velocity across Android and iOS.
Shared libraries power common concerns like authentication, error tracking, and performance monitoring. When apps need to drop into native for camera access, payment hardware, or long-running background tasks, they do so through well-defined native modules.
Shopify teams also contribute directly to React Native ecosystem projects like Mobile Bridge (for enabling web to trigger native UI elements), Skia (for fast 2D rendering), WebGPU (that enables modern GPU APIs and enables general-purpose GPU computation for AI/ML), and Reanimated (for performant animations). In some cases, Shopify engineers co-captain React Native releases.
Programming Languages and Tooling
Shopify’s language choices reflect its commitment to developer productivity and operational resilience.
Ruby remains the backbone of Shopify’s backend. It powers the monolith, the engines, and most of the internal services.
Sorbet, a static type checker for Ruby, fills the safety gap traditionally left open in dynamically typed systems. It enables early feedback on interface violations and contract boundaries.
TypeScript is a first-class language on the frontend. Paired with React, it provides predictable behavior across the web and mobile surfaces.
JavaScript still appears in shared libraries and older assets, but most modern development favors TypeScript for its tooling and clarity.
Lua is used for custom scripting inside OpenResty, Shopify’s edge-layer HTTP server built on Nginx. This enables high-performance, scriptable load balancing.
GraphQL is served from the Ruby backend and used across all major clients, such as web, mobile, and third-party apps.
Kubernetes YAML defines infrastructure deployments, service configurations, and environment scaling parameters.
Remix is a full stack web framework used across various aspects of the platform — Shopify Admin Interface, marketing websites, and Hydrogen, Shopify's headless commerce framework for building custom storefronts.
Developer Tooling & Open Source Contributions
A large monolith doesn’t stay healthy without support. Shopify has developed an ecosystem of internal and open-source tools to enforce structure, automate safety checks, and reduce operational toil.
Packwerk enforces dependency boundaries between components in the monolith. It flags violations early, before they cause architectural drift.
Tapioca automates the generation of Sorbet RBI (Ruby Interface) files, keeping static type definitions in sync with actual code.
Bootsnap improves startup times for Ruby applications by caching expensive computations like YAML parsing and gem loading.
Maintenance Tasks standardize background job execution. They make recurring tasks idempotent, safe to rerun, and easy to observe.
Toxiproxy simulates unreliable network conditions such as latency, dropped packets, or timeouts, allowing services to test their behavior under stress.
TruffleRuby is a high-performance Ruby implementation developed by Oracle. Shopify contributes to this as part of its broader effort to push Ruby further.
Semian is a circuit breaker library for Ruby, protecting critical resources like Redis or MySQL from cascading failures during partial outages.
Roast is a convention-oriented framework for creating structured AI workflows, maintained and used internally by the Augmented Engineering team at Shopify.
A much more exhaustive list of open-source software supported by Shopify is also present here.
Databases, Caching, and Queuing
There are two main categories here:
Primary Database: MySQL
Shopify uses MySQL as its primary relational database, and has done so since the platform's early days. However, as merchant volume and transactional throughput grew, the limits of a single instance became unavoidable.
In 2014, Shopify introduced sharding. Each shard holds a partition of the overall data, and merchants are distributed across those shards based on deterministic rules. This works well in commerce, where tenant isolation is natural. One merchant’s orders don’t need to query another merchant’s inventory.

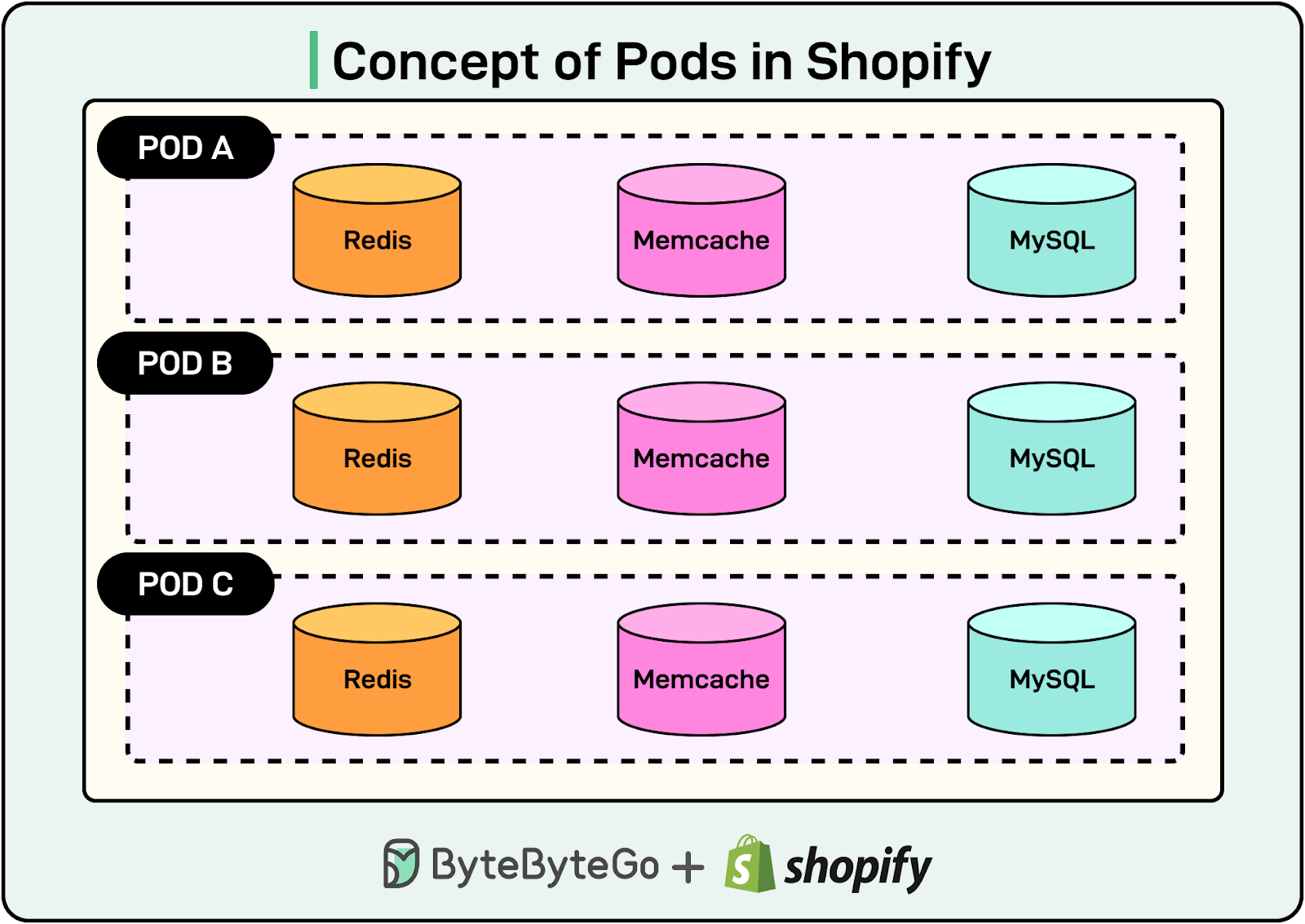

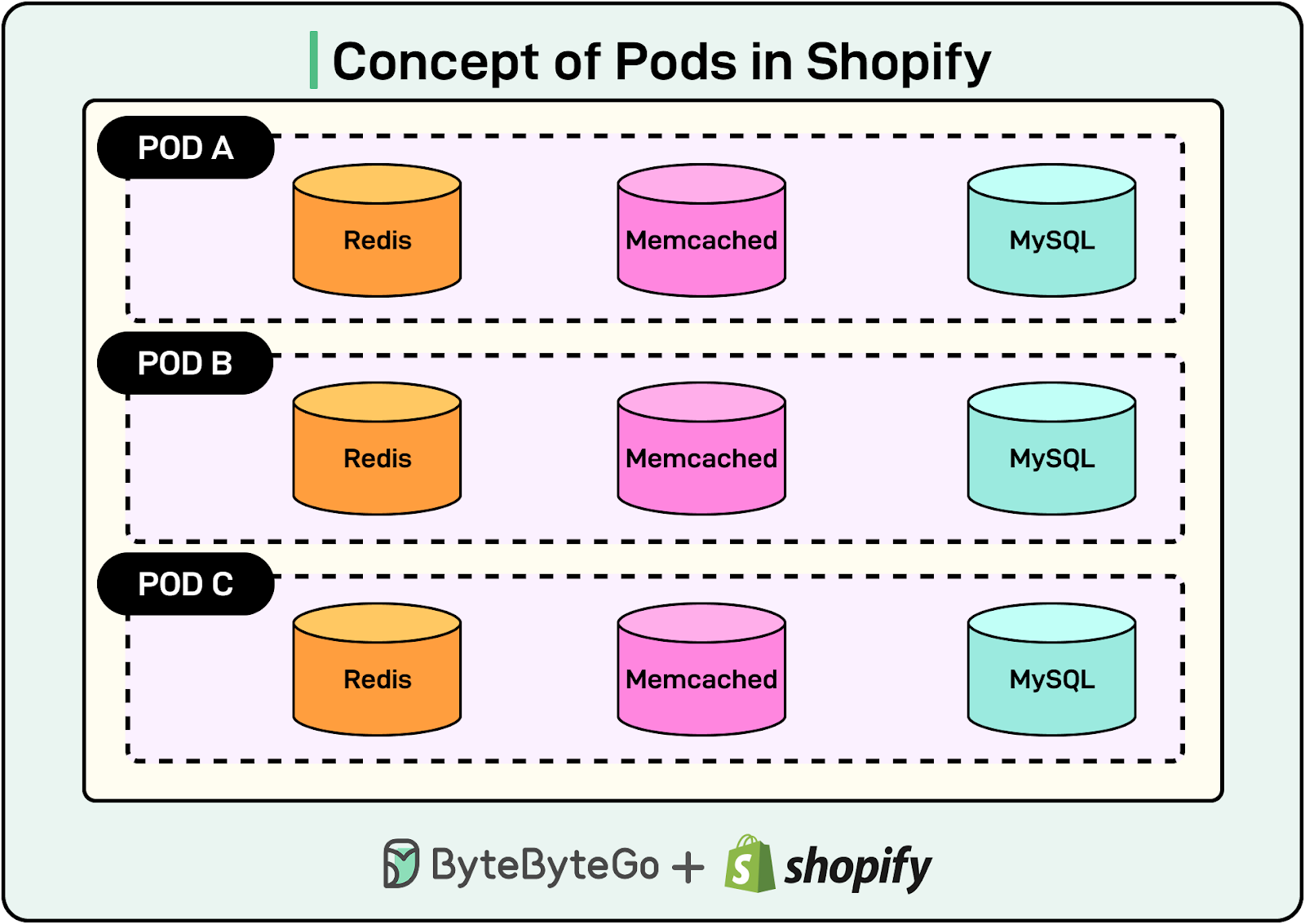

Over time, Shopify replaced the flat shard model with Pods. A pod is a fully isolated slice of Shopify, containing its own MySQL instance, Redis node, and Memcached cluster. Each pod can run independently, and each one can be deployed in a separate geographic region.
This model solves two problems:
It removes single points of failure. An issue in one pod won't cascade across the fleet.
It allows Shopify to scale horizontally by adding more pods instead of vertically scaling the database.
By pushing isolation to the infrastructure level, Shopify contains failure domains and simplifies operational recovery.
Caching and Queues
Shopify relies on two core systems for caching and asynchronous work: Memcached and Redis.
Memcached handles key-value caching. It speeds up frequently accessed reads, like product metadata or user session info, without burdening the database.
Redis powers queues and background job processing. It supports Shopify’s asynchronous workflows: webhook delivery, email sends, payment retries, and inventory syncs.
But Redis wasn’t always scoped cleanly. At one point, all database shards shared a single Redis instance. A failure in that central Redis brought down the entire platform. Internally, the incident is still known as “Redismageddon.”
The lesson Shopify took from this incident was clear: never centralize a system that’s supposed to isolate work. Afterward, Redis was restructured to match the pod model, giving each pod its own Redis node. Since then, outages have been localized, and the platform has avoided global failures tied to shared infrastructure.
Messaging and Communication Between Services
There are two main categories of the same:
Eventing & Streaming
Shopify uses Kafka as the backbone for messaging and event distribution. It forms the spine of the platform’s internal communication layer, decoupling producers from consumers, buffering high-volume traffic, and supporting real-time pipelines that feed search, analytics, and business workflows.
At peak, Kafka at Shopify has handled 66 million messages per second, a throughput level that few systems encounter outside large-scale financial or streaming platforms.
This messaging layer serves several use cases:
Emitting domain events when core objects change (for example, order created, product updated)
Driving ML inference workflows with near real-time updates
Powering search indexing, inventory tracking, and customer notifications
By relying on Kafka, Shopify avoids tight coupling between services. Producers don't wait for consumers. Consumers process at their own pace. And when something goes wrong, like a downstream service crashing, the event stream holds the data until the system recovers.
That’s a practical way to build resilience into a fast-moving platform.
API Interfaces
For synchronous interactions, Shopify services communicate over HTTP, using a mix of REST and GraphQL.
REST APIs still power much of the internal communication, especially between older services and support tools.
GraphQL is the preferred interface for frontend and mobile clients. It allows precise data queries, reduces over-fetching, and aligns with Shopify’s philosophy of pushing complexity to the server.
However, as the number of services grows, this model starts to strain. Synchronous calls introduce tight coupling and hidden failure paths, especially when one service transitively depends on five others.
To address this, Shopify is actively exploring RPC standardization and service mesh architectures. The goal is to build a communication layer that’s:
Observably reliable
Easy to reason about
Standardized across all environments
ML Infrastructure at Shopify
The ML infrastructure at Shopify could be divided into two main parts:
Real-Time Search with Embeddings

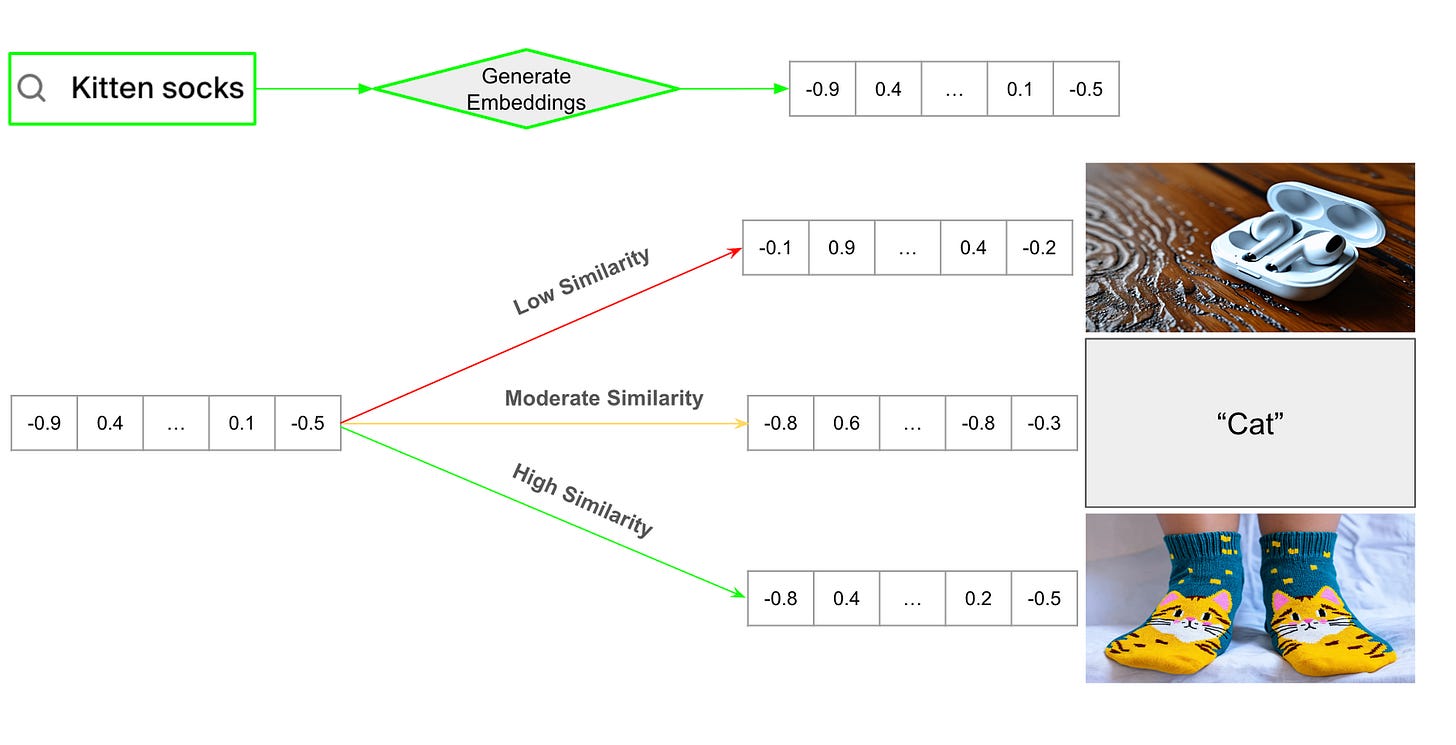

Shopify’s storefront search doesn’t rely on traditional keyword matching. It uses semantic search powered by text and image embeddings: vector representations of product metadata and visual features that enable more relevant, contextual search results.
This system runs at production scale. Shopify processes around 2,500 embeddings per second, translating to over 216 million per day. These embeddings cover multiple modalities, including:
Product titles and descriptions (text)
Images and thumbnails (visual content)
Each embedding is generated in near real time and immediately published to downstream consumers that use them to update search indices and personalize results.
The embedding system also performs intelligent deduplication. For example, visually identical images are grouped to avoid unnecessary inference. This optimization alone reduced image embedding memory usage from 104 GB to under 40 GB, freeing up GPU resources and cutting costs across the pipeline.
Data Pipeline Infrastructure

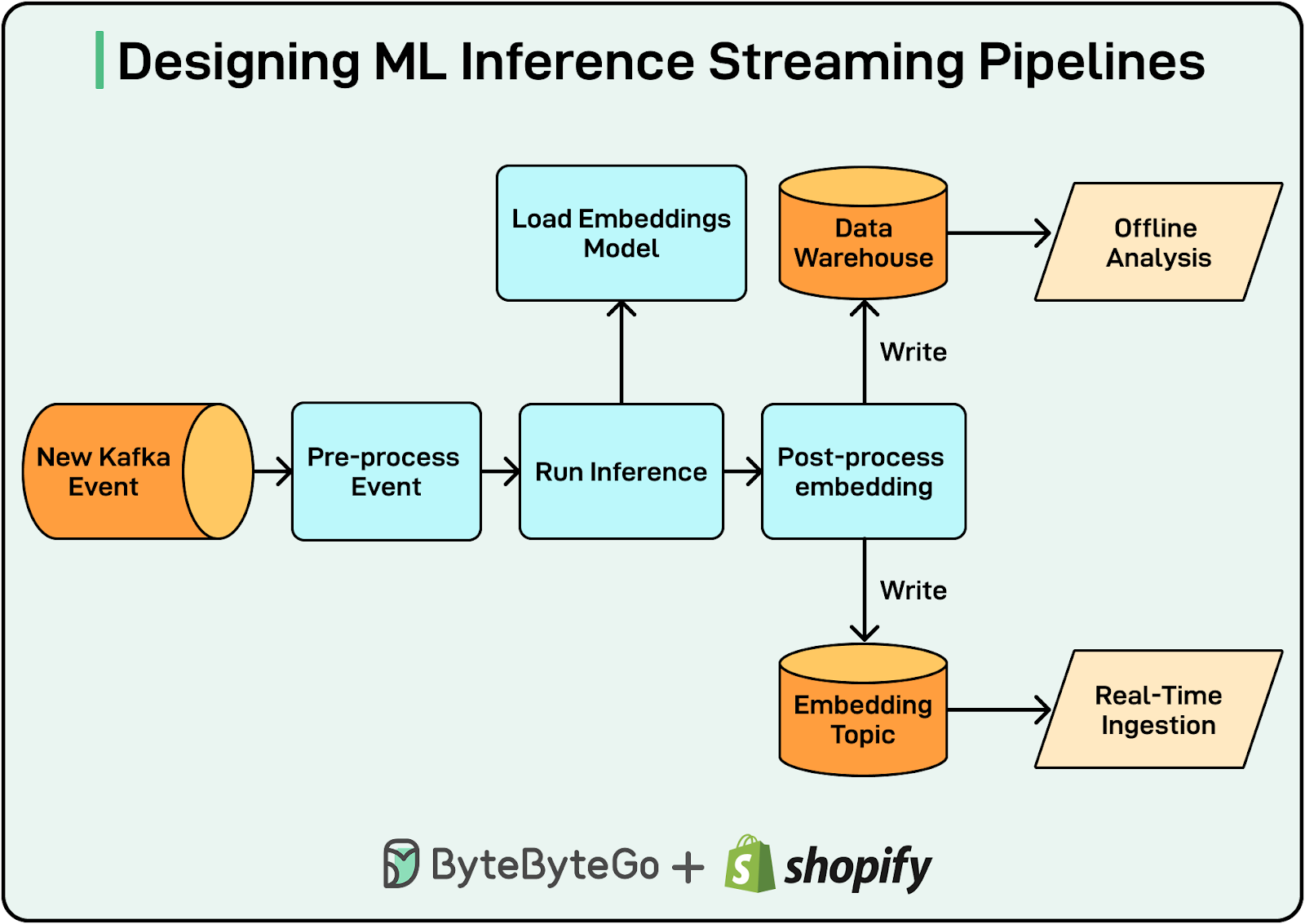

Under the hood, Shopify runs its ML pipelines on Apache Beam, executed through Google Cloud Dataflow. This setup supports:
Streaming inference at scale.
GPU acceleration through custom ModelHandler components.
Efficient pipeline parallelism using optimized thread pools.
Inference jobs are structured to process embeddings as quickly and cheaply as possible. The pipeline uses a low number of concurrent threads (down from 192 to 64) to prevent memory contention, ensuring that inference performance remains predictable under load.
Shopify trades off between latency, throughput, and infrastructure cost. The current configuration strikes that balance carefully:
Embeddings are generated fast enough for near-real-time updates
GPU memory is used efficiently
Redundant computation is avoided through smart caching and pre-filtering
For offline analytics, Shopify stores embeddings in BigQuery, allowing large-scale querying, trend analysis, and model performance evaluation without affecting live systems.
DevOps, CI/CD & Deployment
This area can be divided into the following parts:
Kubernetes-Based Deployment
Shopify deploys infrastructure using Kubernetes, running on Google Kubernetes Engine (GKE). Each Shopify pod, an isolated unit containing its own MySQL, Redis, and Memcached stack, is defined declaratively through Kubernetes YAML, making it easy to replicate, scale, and isolate across regions.
The runtime environment uses Docker containers for packaging applications and OpenResty, built on Nginx with embedded Lua scripting, for custom load balancing at the edge. These Lua scripts give Shopify fine-grained control over HTTP behavior, enabling smart routing decisions and performance optimizations closer to the user.
Before Kubernetes, deployment was managed through Chef, a configuration management tool better suited for static environments. As the platform evolved, so did the need for a more dynamic, container-based architecture. The move to Kubernetes replaced slow, manual provisioning with fast, declarative infrastructure-as-code.
CI/CD Process
Shopify’s monolith contains over 400,000 unit tests, many of which exercise complex ORM behaviors. Running all of them serially would take hours, maybe days. To stay fast, Shopify relies on Buildkite as its CI orchestrator. Buildkite coordinates test runs across hundreds of parallel workers, slashing feedback time and keeping builds within a 15–20 minute window.

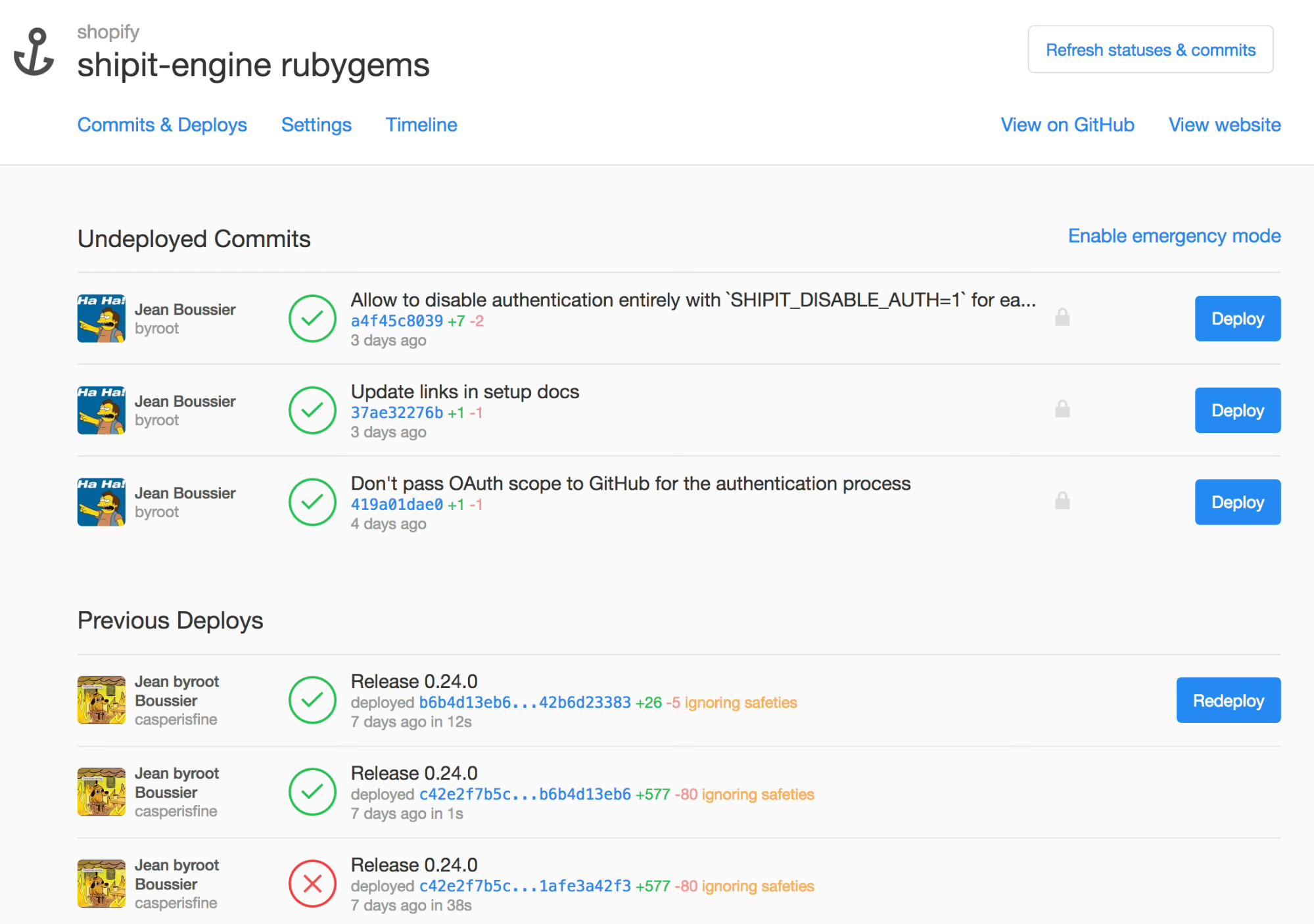

Once the build passes, Shopify's internal deployment tools take over and offer visibility into who's deploying what, and where.
Deployments don’t go straight to production. Instead, ShipIt uses a Merge Queue to control rollout. At peak hours, only 5–10 commits are merged and deployed at a time. This throttling makes issues easier to trace and minimizes the blast radius when something breaks.
Notably, Shopify doesn’t rely on staging environments or canary deploys. Instead, they use feature flags to control exposure and fast rollback mechanisms to undo bad changes quickly. If a feature misbehaves, it can be turned off without redeploying the code.
Observability, Reliability, and Security
This area can be divided into multiple parts, such as:
Observability Infrastructure

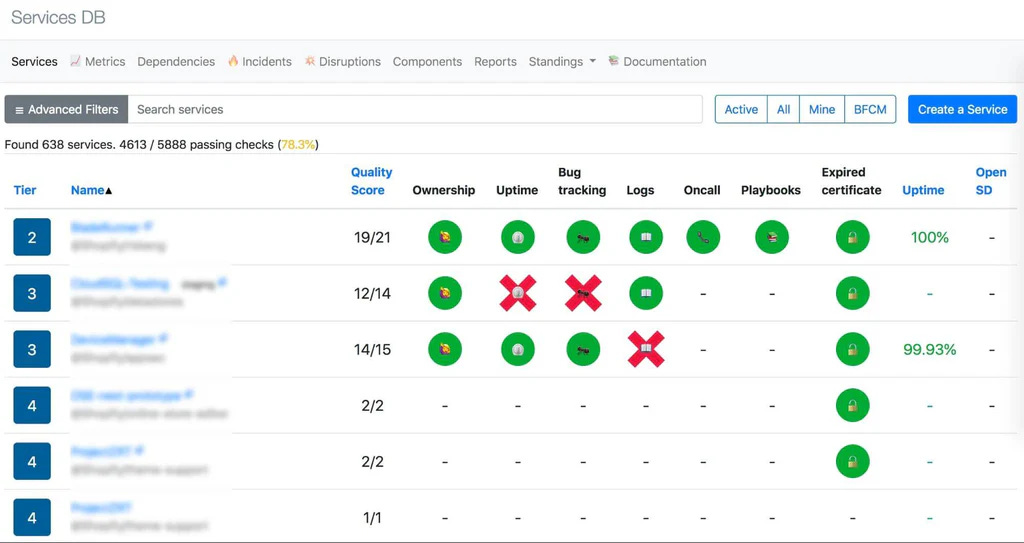

Shopify takes a structured, service-aware approach to observability. At the center of this is ServicesDB, an internal service registry that tracks:
Service ownership and team accountability
Runtime logs and exception reports
Uptime and operational health
Gem versions and security patch status
Dependency graphs across applications
ServicesDB catalog metadata and enforces good practices. When a service falls out of compliance (for example, due to outdated gems or missing logs), it automatically opens GitHub issues and tags the responsible team. This creates continuous pressure to maintain service quality across the board.
Incident response isn’t siloed into a single ops team. Shopify uses a lateral escalation model: all engineers share responsibility for uptime, and escalation happens based on domain expertise, not job title. This encourages shared ownership and reduces handoff delays during critical outages.
For fault tolerance, Shopify leans on two key tools:
Semian, a circuit breaker library for Ruby, helps protect core services like Redis and MySQL from cascading failures during degradation.
Toxiproxy lets engineers simulate bad network conditions (latency spikes, dropped packets, service flaps) before those issues appear in production. It’s used in test environments to validate resilience assumptions early.
Supply Chain & Security
Security isn’t an afterthought in Shopify’s stack, but part of the ecosystem investment. Since the company relies heavily on Ruby, it also works actively to secure the Ruby community at large.
Key efforts include:
Ongoing contributions to Bundler and RubyGems, focusing on dependency integrity and package security.
A close partnership with Ruby Central, the non-profit that oversees Ruby infrastructure.
A $500,000 commitment to fund academic research and performance improvements in the Ruby ecosystem.
The goal isn’t just to secure Shopify’s stack, but to strengthen the foundation shared by thousands of developers who depend on the same tools.
Shopify’s Scale
Shopify's architecture isn’t theoretical. It’s built to withstand real-world pressure—Black Friday flash sales, celebrity product drops, and continuous developer activity across a global platform. These numbers put that scale in context.
$5 billion in Gross Merchandise Volume (GMV) processed on Black Friday.
284 million requests per minute at the edge during peak load.
173 billion total requests handled in a single 24-hour period.
12 terabytes of traffic egress per minute across Shopify’s edge network.
45 million database queries per second at peak read load.
7.6 million database writes per second during transactional bursts.
66 million Kafka messages per second, sustaining Shopify’s real-time event pipelines.
100,000+ unit tests executed in CI on every monolith build.
216 million embeddings processed per day through ML inference pipelines.
>99.9% crash-free session rate across React Native mobile apps.
2.8 million lines of Ruby code in the monolith, with over 500,000 commits in version control.
100+ isolated pods, each containing its stack (MySQL, Redis, Memcached).
100+ internal Rails apps, maintained alongside the monolith using shared standards.
