This week’s system design refresher:

  • OAuth 2 explained in simple terms (Youtube video)

  • Comparison of URL, URI, and URN

  • Data Warehouse vs Data Lake

  • Twitter 1.0 Tech Stack

  • Sponsor us


OAuth 2 Explained in Simple Terms


URL, URI, URN - Do you know the differences?

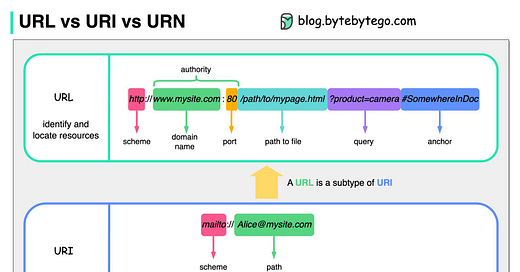

The diagram below shows a comparison of URL, URI, and URN.

  • URI

URI stands for Uniform Resource Identifier. It identifies a logical or physical resource on the web. URL and URN are subtypes of URI. URL locates a resource, while URN names a resource.

A URI is composed of the following parts:

scheme:[//authority]path[?query][#fragment]

  • URL

URL stands for Uniform Resource Locator, the key concept of HTTP. It is the address of a unique resource on the web. It can be used with other protocols like FTP and JDBC.

  • URN

URN stands for Uniform Resource Name. It uses the urn scheme. URNs cannot be used to locate a resource. A simple example given in the diagram is composed of a namespace and a namespace-specific string.

If you would like to learn more detail on the subject, I would recommend W3C’s clarification.


What are the differences between a data warehouse and a data lake?

The diagram below shows their comparison.

  • A data warehouse processes structured data, while a data lake processes structured, semi-structured, unstructured, and raw binary data.

  • A data warehouse leverages a database to store layers of structured data, which can be expensive. A data lake stores data in low-cost devices.

  • A data warehouse performs Extract-Transform-Load (ETL) on data. A data lake performs Extract-Load-Transform (ELT).

  • A data warehouse is schema-on-write, which means the data is already prepared when written into the data warehouse. A data lake is schema-on-read, so the data is stored as it is. The data can then be transformed and stored in a data warehouse for consumption.

Over to you: Do you use a data warehouse or a data lake to retrieve data?


Twitter 1.0 Tech Stack

This post is based on research from many Twitter engineering blogs and open-source projects. If you come across any inaccuracies, please feel free to inform us.

Mobile: Swift, Kotlin, PWA

Web: JS, React, Redux

Services: Mesos, Finagle

Caching: Pelikan Cache, Redis

Databases: Manhattan, MySQL, PostgreSQL, FlockDB, MetricsDB

Message queues: Kafka, Kestrel

Data processing: Heron, Flume, Tableau, SummingBird, Scalding

Data storage: Hadoop, blob store

Data centers: Twitter data center, AWS, Google Cloud

Tools: Puppet, Audubon, Wilson
